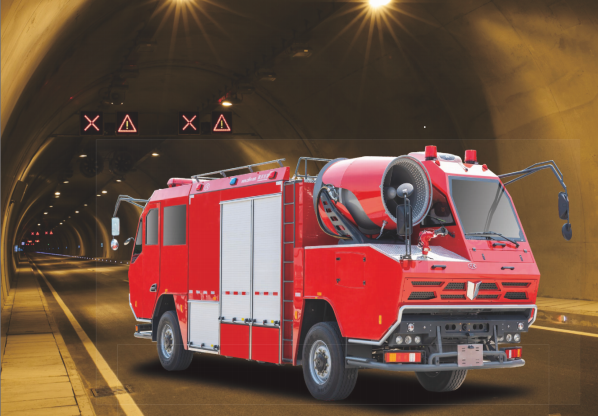

隧道消防車

Tunnel Fire Truck

型    號：SXF5171GXFSD20

外形尺寸∶10300mm×2500mm×3700mm

底    盤∶U5S1BJ專用底盤           驅動形式∶4×2

額定功率∶285/1900（kW/rpm）

載液3噸（水2.4噸、A類泡沫0.2噸、B類泡沫0.4噸）

泵 流 量: 40L/s                       炮 流 量: 20L/s

可雙向行駛、低速行駛時可以出水

配備水霧排煙系統

配備車輛自保噴淋系統

選裝進口絞盤

選裝固定式發電機、升降照明燈

選裝高壓快速滅火卷盤

Model SXF5171GXFSD30

Dimensions 10300mm×2500mm×3700mm

U5S1BJ Chassis                   Drive form 4 × 2

Engine power 285/1900 (kw/rpm)

Liquid Tank 3T ( Water 2.4T,Atype foam 0.2T,B type foam 0.4T )

Pump flow rate 40L/s                              Monitor flow rate 20L/s

Two-way driving,spray water at low speed

Equipped with water mist smoke suction system

Equipped with vehicle self-protection sprinkler system

Optional with imported winch

Optional with generator and telescopic light

Optional with high pressure hose reel
